Goanwin C2N double-point C-frame mechanical press

Goanwin / C-frame double point

C2N mechanical presses.
Wider tooling, balanced drive.

Five double-point models cover 110 to 315 tons with slide widths up to 2,100 mm and bolsters up to 2,700 mm wide.

Compare specifications ↘Request a C2N review

110–315 TCapacity range

5Models

20–100Variable SPM range

2,700 mmMaximum bolster width

Platform overview

Double-point drive for wider dies and broader working areas.

C2N presses extend the C-frame format across a wide slide and bolster, with two drive points supporting load distribution across the working area.

Review bed size, off-center loading, die cushion demand, stroke and speed together. The final selection should be checked against the actual tool and operating point.

01 / WidthSlides from 1,400 to 2,100 mm

02 / BolsterUp to 2,700 × 900 mm

03 / CushionTwo plates and two cylinders

04 / CellGuarded automation-ready layouts

Popular sizeFeatured C2N model

C2N-200 at a glance.

The C2N-200 is a popular mid-range size, pairing 200-ton capacity with a 1,850 mm slide and a 2,400 mm bolster. Use this quick view to place it within the full five-model range.

Request a C2N-200 review →WhatsApp sales

Capacity200 TSeries range: 110–315 T

Slide area1,850 × 650Series widths: 1,400–2,100 mm

Bolster area2,400 × 840Series widths: 1,800–2,700 mm

Stroke / speed250 / 150 mm25–45 / 35–70 SPM (V / H)

C2N gallery

Wide-bed press architecture in studio and production views.

Open any image for a larger view. The photographs show front, three-quarter and production-cell configurations across the C2N range.

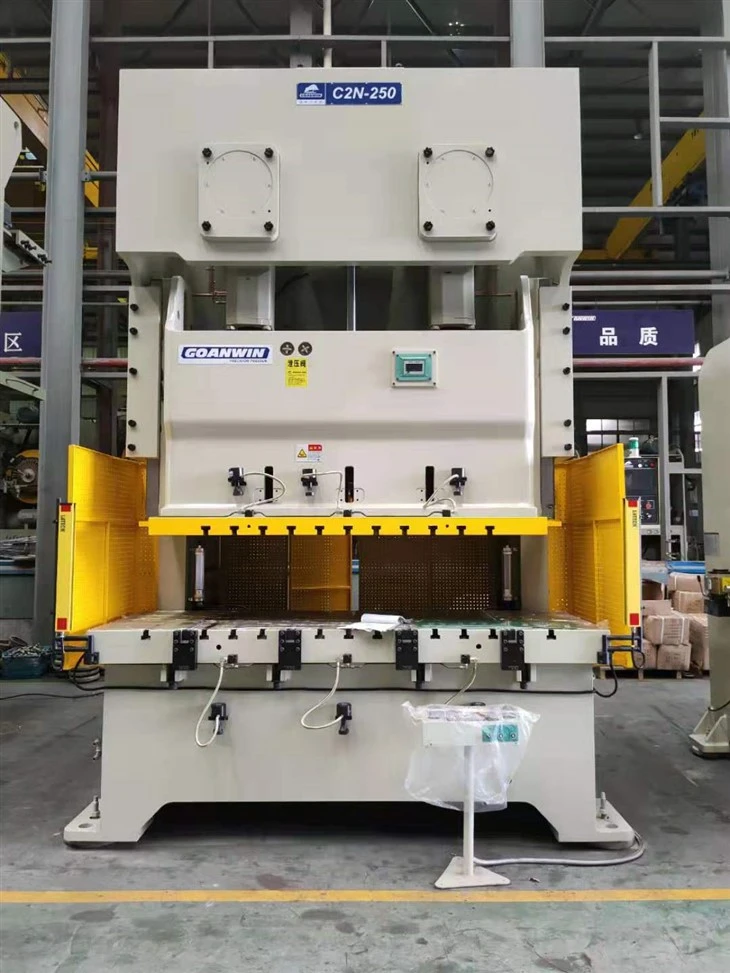

Front view of a Goanwin C2N-250 double-point press — C2N-250 front viewView image

Three-quarter view of a Goanwin C2N-250 press with yellow side guarding — Guarding and controlsView image

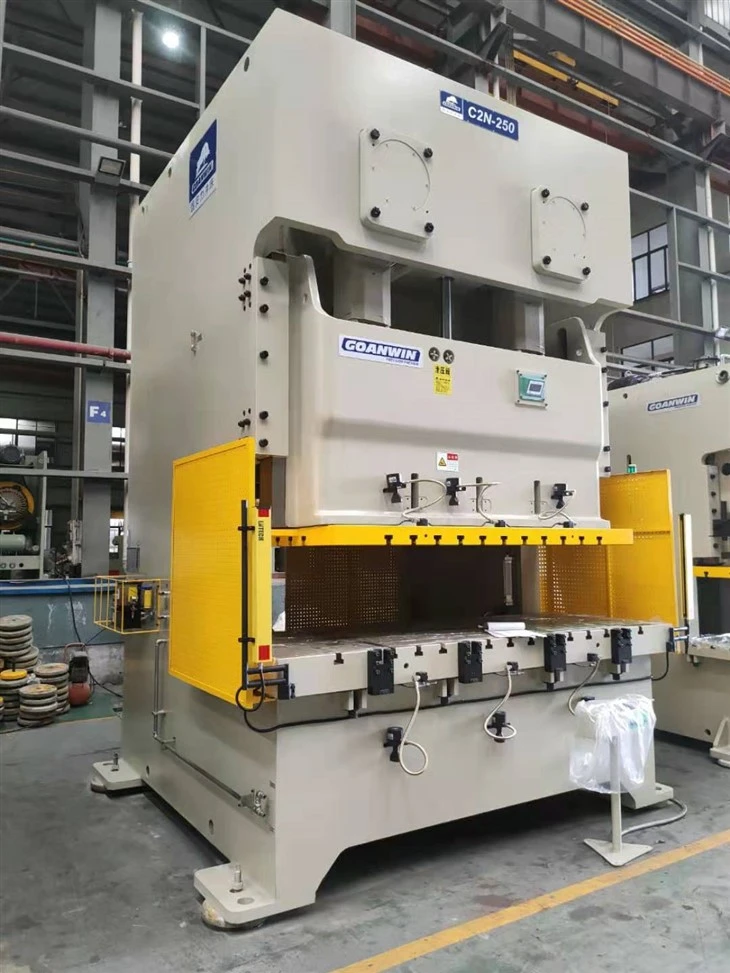

Side view of a Goanwin C2N-250 mechanical press — Frame profileView image

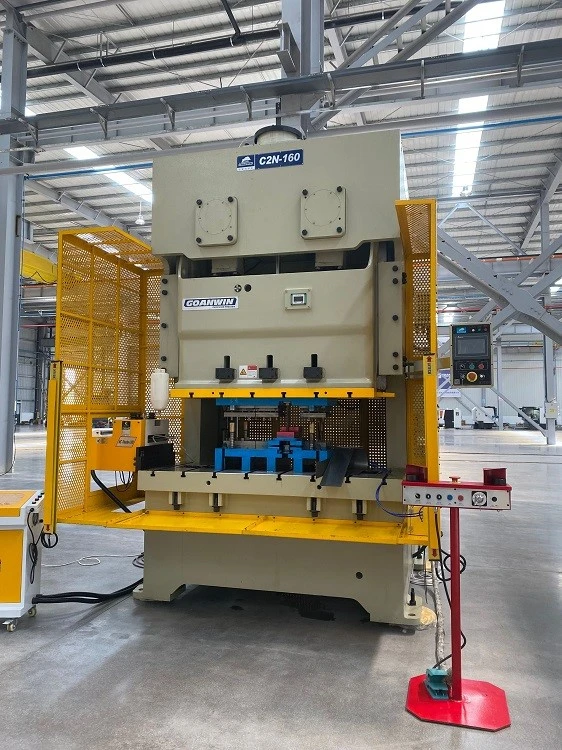

Goanwin C2N-160 press with its working area guarded — C2N-160 tooling areaView image

Goanwin C2N-160 production cell with perimeter guards and remote controls — C2N-160 production cellView image

Large manufacturing floor with multiple guarded Goanwin presses — Press factory floorView image

Complete model table

C2N series specifications.

Compare working area, stroke, speed and die-cushion data across the five double-point configurations.

V / H values are shown in the same order as supplied. Scroll horizontally on smaller screens.

5 models / 15 specifications

Specification	Unit	C2N-110	C2N-160	C2N-200 Popular size	C2N-250	C2N-315
Capacity	Ton	110	160	200	250	315
Rated tonnage point (V / H)	mm	5 / 3	6 / 3	6 / 3	7 / 3.5	8 / 4
Stroke (V / H)	mm	180 / 110	200 / 130	250 / 150	280 / 170	280 / 170
Stroke per minute (V / H)	SPM	35–65 / 50–100	30–55 / 40–85	25–45 / 35–70	20–35 / 30–60	20–35 / 30–60
Die height (V / H)	mm	400 / 435	450 / 485	500 / 550	550 / 605	550 / 605
Slide adjustment	mm	100	100	120	120	120
Slide area	mm	1400×500×70	1600×550×70	1850×650×95	2100×700×95	2100×700×95
Bolster area	mm	1800×650×130	2000×760×150	2400×840×170	2700×900×170	2700×900×180
Main motor	kW.p	11×4	15×4	18.5×4	22×4	30×4
Air pressure	kg/cm²	6	6	6	6	6
Press precision	—	JIS (CNS) 1 class	JIS (CNS) 1 class	JIS (CNS) 1 class	JIS (CNS) 1 class	JIS (CNS) 1 class
Die cushion	—	Two plate / two cylinders	Two plate / two cylinders	Two plate / two cylinders	Two plate / two cylinders	Two plate / two cylinders
Die cushion capacity	Ton	3.6×2	6.3×2	10×2	14×2	14×2
Die cushion stroke	mm	70	70	80	100	100
Die cushion work area	mm	350×235×2 groups	410×260×2 groups	540×350×2 groups	640×470×2 groups	640×470×2 groups

C2N-200 is the featured popular size

Specifications are presented from information provided by the manufacturer. Confirm the final working envelope for the selected material grade, yield strength, surface, controls, electrical standard and destination requirements.

C2N application review

Size the working area and load path together.

Share the die footprint, load distribution, stroke, shut height, speed and automation plan. We will help organize the C2N model review.
