Press-n-Feeder cut-to-length line processing steel coil

Press-n-Feeder / sheet production

Level, measure, cut.
Produce accurate blanks.

KJH25, KJH40 and KJH60 lines cover light- through heavy-gauge material with working widths up to 2,500 mm.

Compare all models ↘Discuss a CTL line

0.3–16 mmSheet thickness

650–2,500 mmModel widths

25–60 m/minLine speed

±0.5–1.0Length tolerance mm/m

From coil to blank

Coordinate leveling accuracy, cut length and stack quality.

A cut-to-length line is a complete material-flow system. Decoiling, leveling, measurement, shear timing and stacking must suit the actual strip and finished blank.

Series selection starts with the thickness-width envelope, then considers line speed, flatness, length tolerance, coil weight and the required stacking workflow.

01 / InputCoil width, gauge and weight

02 / QualityLeveling precision and surface

03 / OutputBlank length and tolerance

04 / HandlingShear, stack and discharge flow

CTL gallery

Material entry, leveling and finished stacks.

Select an image for a larger view of the line and its output handling.

Cut-to-length line handling a steel coil at the leveling section — Coil entry and levelingView image

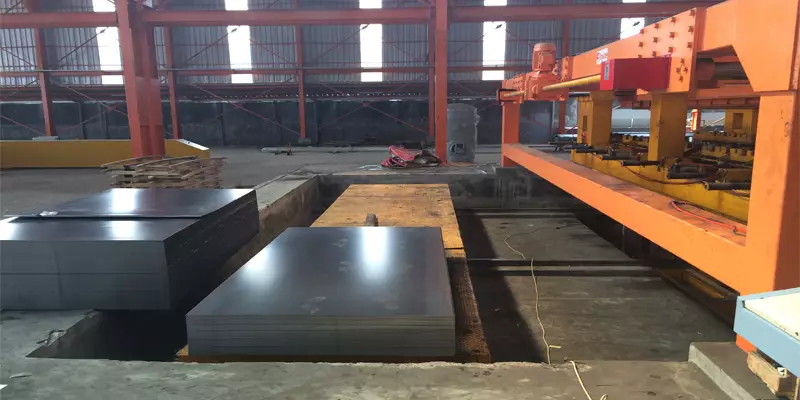

Stacks of cut steel sheets beside a cut-to-length line — Finished sheet stacksView image

Model library

Cut-to-length specification tables.

Open a series to compare every listed thickness-width combination. Coil-weight choices are shown in tons.

40KJH40 series0.3–6.0 mm / 40 m/min / widths to 2,000 mm

Model	Thickness	Coil width	Leveling precision	Length tolerance	Line speed	Coil weight max.
KJH40-2×650	0.3–2.0 mm	150–650 mm	1.2 mm/m²	±0.5 mm/m	40 m/min	3 / 5 T
KJH40-2×850	0.3–2.0	300–850	1.2	±0.5	40	5 / 10 T
KJH40-2×1050	0.3–2.0	300–1,050	1.2	±0.5	40	5 / 10 T
KJH40-2×1300	0.3–2.0	400–1,300	1.2	±0.5	40	10 / 15 T
KJH40-2×1600	0.3–2.0	400–1,600	1.2	±0.5	40	15 / 20 T
KJH40-3×650	0.4–3.0	150–650	1.2	±0.5	40	3 / 5 T
KJH40-3×850	0.4–3.0	300–850	1.2	±0.5	40	5 / 10 T
KJH40-3×1050	0.4–3.0	300–1,050	1.2	±0.5	40	10 / 15 T
KJH40-3×1300	0.4–3.0	400–1,300	1.2	±0.5	40	10 / 15 T
KJH40-3×1600	0.4–3.0	400–1,600	1.2	±0.5	40	15 / 20 T
KJH40-4×1300	0.5–4.0	400–1,300	1.2	±0.5	40	10 / 15 T
KJH40-4×1600	0.5–4.0	400–1,600	1.2	±0.5	40	10 / 15 T
KJH40-4×2000	0.5–4.0	500–2,000	1.2	±0.5	40	15 / 20 T
KJH40-6×1600	1–6	400–1,600	1.5	±0.5	40	20 / 25 T
KJH40-6×2000	1–6	500–2,000	1.5	±0.5	40	20 / 25 T

60KJH60 series0.3–4.0 mm / 60 m/min / widths to 2,000 mm

Model	Thickness	Coil width	Leveling precision	Length tolerance	Line speed	Coil weight max.
KJH60-2×650	0.3–2.0 mm	150–650 mm	1.2 mm/m²	±0.5 mm/m	60 m/min	3 / 5 T
KJH60-2×850	0.3–2.0	300–850	1.2	±0.5	60	5 / 10 T
KJH60-2×1050	0.3–2.0	300–1,050	1.2	±0.5	60	5 / 10 T
KJH60-2×1300	0.3–2.0	400–1,300	1.2	±0.5	60	10 / 15 T
KJH60-2×1600	0.3–2.0	400–1,600	1.2	±0.5	60	15 / 20 T
KJH60-3×650	0.4–3.0	150–650	1.2	±0.5	60	3 / 5 T
KJH60-3×850	0.4–3.0	300–850	1.2	±0.5	60	5 / 10 T
KJH60-3×1050	0.4–3.0	300–1,050	1.2	±0.5	60	10 / 15 T
KJH60-3×1300	0.4–3.0	400–1,300	1.2	±0.5	60	10 / 15 T
KJH60-3×1600	0.4–3.0	400–1,600	1.2	±0.5	60	15 / 20 T
KJH60-4×1300	0.5–4.0	400–1,300	1.2	±0.5	60	10 / 15 T
KJH60-4×1600	0.5–4.0	400–1,600	1.2	±0.5	60	10 / 15 T
KJH60-4×2000	0.5–4.0	500–2,000	1.2	±0.5	60	15 / 20 T

25KJH25 series3–16 mm / 25 m/min / widths to 2,500 mm

Model	Thickness	Coil width	Leveling precision	Length tolerance	Line speed	Coil weight max.
KJH25-10×2000	3–10 mm	500–2,000 mm	2 mm/m²	±1.0 mm/m	25 m/min	15 / 20 / 25 T
KJH25-10×2200	3–10	600–2,200	2	±1.0	25	20 / 30 / 40 T
KJH25-10×2500	3–10	800–2,500	2	±1.0	25	20 / 30 / 40 T
KJH25-12×2000	3–12	500–2,000	2	±1.0	25	20 / 30 / 40 T
KJH25-12×2200	3–12	600–2,200	2	±1.0	25	20 / 30 / 40 T
KJH25-12×2500	3–12	800–2,500	2	±1.0	25	20 / 30 / 40 T
KJH25-14×2000	4–14	500–2,000	2.5	±1.0	25	20 / 30 / 40 T
KJH25-14×2200	4–14	600–2,200	2.5	±1.0	25	20 / 30 / 40 T
KJH25-14×2500	4–14	800–2,500	2.5	±1.0	25	20 / 30 / 40 T
KJH25-16×2000	4–16	500–2,000	2.5	±1.0	25	20 / 30 / 40 T
KJH25-16×2200	4–16	600–2,200	2.5	±1.0	25	20 / 30 / 40 T
KJH25-16×2500	4–16	800–2,500	2.5	±1.0	25	20 / 30 / 40 T

Specifications are presented from information provided by the manufacturer. Confirm the final working envelope for the selected material grade, yield strength, surface, controls, electrical standard and destination requirements.

CTL line review

Define the coil and the finished blank.

Share material grade, thickness and width, coil weight, blank length, flatness and length tolerances, production rate and stacking requirements.
