Press-n-Feeder / coil-to-strip processing

Slit, separate, rewind.
Control every strip.

KJS40, KJS60, KJS120 and KJS180 lines cover thicknesses from 0.2 to 16 mm, coil widths to 2,500 mm and speeds to 180 m/min.

Compare all models ↘Discuss a slitting line
0.2–16 mmSheet thickness
650–2,500 mmModel widths
40–180 m/minLine speed
±0.05–0.10Length tolerance mm/m
Coil to slit coil

Design the line around strip geometry and edge quality.

Slitting performance depends on the complete path from decoiling and entry guidance through the cutter head, scrap handling, tension control, separation and recoiling.

Series selection should account for gauge, width, material strength, number of cuts, finished strip widths, line speed, edge requirements and coil handling.

01 / InputMaterial, coil and surface
02 / CutKnife setup and slit count
03 / ControlTension and strip separation
04 / OutputRecoiled strip geometry
Slitting gallery

Entry, cutter head, strip output and recoiling.

Select any image for a larger view of the working line and its major stages.

Complete lineView image

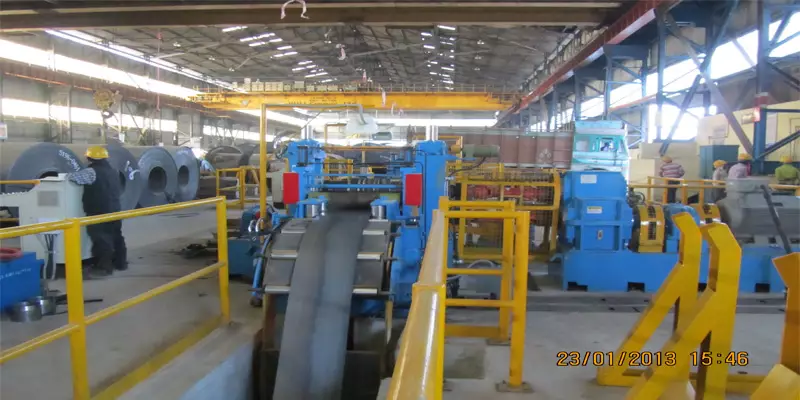

Strip outputView image

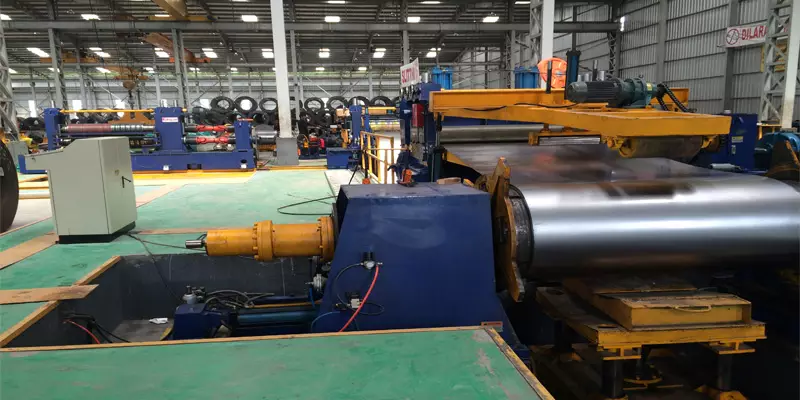

Recoiling sectionView image

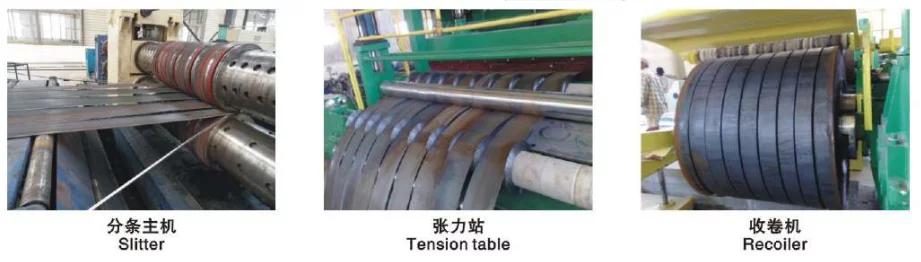

Process stagesView image
Model library

Coil slitting specification tables.

Open a series to compare every gauge-width combination. Slit-count values and coil-weight options are reproduced from the supplied data.

120KJS120 series0.2–6.0 mm / 0–120 m/min / widths to 2,000 mm
ModelThicknessCoil widthNo. of slittingToleranceLine speedCoil weight max.
KJS120-1×6500.2–1 mm150–650 mm30–8±0.05 mm/m0–120 m/min3 / 5 T
KJS120-1×8500.2–1300–85030–8±0.050–1205 / 10 T
KJS120-1×10500.2–1300–1,05030–8±0.050–1205 / 10 T
KJS120-1×13000.2–1400–1,30030–8±0.050–12010 / 15 T
KJS120-2×6500.3–2150–65030–8±0.050–1203 / 5 T
KJS120-2×8500.3–2300–85030–8±0.050–1205 / 10 T
KJS120-2×10500.3–2300–1,05030–8±0.050–1205 / 10 T
KJS120-2×13000.3–2400–1,30030–8±0.050–12010 / 15 T
KJS120-2×16000.3–2400–1,60030–8±0.050–12015 / 20 T
KJS120-2×20000.3–2500–2,00030–8±0.050–12015 / 20 T
KJS120-3×13000.4–3400–1,30030–6±0.050–12010 / 15 T
KJS120-3×16000.4–3400–1,60030–6±0.050–12015 / 20 T
KJS120-3×20000.4–3500–2,00030–6±0.050–12015 / 20 T
KJS120-4×13000.5–4400–1,30030–6±0.050–12010 / 15 T
KJS120-4×16000.5–4400–1,60030–6±0.050–12015 / 20 T
KJS120-4×20000.5–4500–2,00030–6±0.050–12015 / 20 T
KJS120-6×16000.6–6400–1,60030–5±0.080–12015 / 20 T
KJS120-6×20000.6–6500–2,00030–5±0.080–12015 / 20 T
180KJS180 series0.2–3.0 mm / 0–180 m/min / widths to 2,000 mm
ModelThicknessCoil widthNo. of slittingToleranceLine speedCoil weight max.
KJS180-1×6500.2–1 mm150–650 mm30–8±0.05 mm/m0–180 m/min3 / 5 T
KJS180-1×8500.2–1300–85030–8±0.050–1805 / 10 T
KJS180-1×10500.2–1300–1,05030–8±0.050–1805 / 10 T
KJS180-1×13000.2–1400–1,30030–8±0.050–18010 / 15 T
KJS180-2×6500.3–2150–65030–8±0.050–1803 / 5 T
KJS180-2×8500.3–2300–85030–8±0.050–1805 / 10 T
KJS180-2×10500.3–2300–1,05030–8±0.050–1805 / 10 T
KJS180-2×13000.3–2400–1,30030–8±0.050–18010 / 15 T
KJS180-2×16000.3–2400–1,60030–8±0.050–18015 / 20 T
KJS180-2×20000.3–2500–2,00030–8±0.050–18015 / 20 T
KJS180-3×13000.4–3400–1,30030–6±0.050–18010 / 15 T
KJS180-3×16000.4–3400–1,60030–6±0.050–18015 / 20 T
60KJS60 series0.2–8.0 mm / 0–60 m/min / widths to 2,000 mm
ModelThicknessCoil widthNo. of slittingToleranceLine speedCoil weight max.
KJS60-1×6500.2–1 mm150–650 mm30–8±0.05 mm/m0–60 m/min3 / 5 T
KJS60-1×8500.2–1300–85030–8±0.050–605 / 10 T
KJS60-1×10500.2–1300–1,05030–8±0.050–605 / 10 T
KJS60-1×13000.2–1400–1,30030–8±0.050–6010 / 15 T
KJS60-2×6500.3–2150–65030–8±0.050–603 / 5 T
KJS60-2×8500.3–2300–85030–8±0.050–605 / 10 T
KJS60-2×10500.3–2300–1,05030–8±0.050–605 / 10 T
KJS60-2×13000.3–2400–1,30030–8±0.050–6010 / 15 T
KJS60-2×16000.3–2400–1,60030–8±0.050–6015 / 20 T
KJS60-2×20000.3–2500–2,00030–8±0.050–6015 / 20 T
KJS60-3×13000.4–3400–1,30030–6±0.050–6010 / 15 T
KJS60-3×16000.4–3400–1,60030–6±0.050–6015 / 20 T
KJS60-3×20000.4–3500–2,00030–6±0.050–6015 / 20 T
KJS60-4×13000.5–4400–1,30030–6±0.050–6010 / 15 T
KJS60-4×16000.5–4400–1,60030–6±0.050–6015 / 20 T
KJS60-4×20000.5–4500–2,00030–6±0.050–6015 / 20 T
KJS60-6×16000.6–6400–1,60030–5±0.080–6015 / 20 T
KJS60-6×20000.6–6500–2,00030–5±0.080–6015 / 20 T
KJS60-8×16000.8–8400–1,60030–5±0.080–6015 / 20 T
KJS60-8×20000.8–8500–2,00030–5±0.080–6015 / 20 T
40KJS40 series2–16 mm / 0–40 m/min / widths to 2,500 mm
ModelThicknessCoil widthNo. of slittingToleranceLine speedCoil weight max.
KJS40-8×16002–8 mm400–1,600 mm15–6±0.1 mm/m0–40 m/min15 / 20 / 25 T
KJS40-8×20002–8500–2,00015–6±0.10–4015 / 20 / 25 T
KJS40-8×22002–8600–2,20015–6±0.10–4015 / 20 / 25 T
KJS40-10×16003–10400–1,60015–6±0.10–4015 / 20 / 25 T
KJS40-10×20003–10500–2,00015–6±0.10–4015 / 20 / 25 T
KJS40-10×22003–10600–2,20015–6±0.10–4015 / 20 / 25 T
KJS40-12×16003–12400–1,60015–5±0.10–4015 / 20 / 25 T
KJS40-12×20003–12500–2,00015–5±0.10–4015 / 20 / 25 T
KJS40-12×22003–12600–2,20015–5±0.10–4015 / 20 / 25 T
KJS40-12×25003–12600–2,50015–5±0.10–4015 / 20 / 25 T
KJS40-14×16004–14400–1,60012–5±0.10–4020 / 25 / 30 T
KJS40-14×20004–14500–2,00012–5±0.10–4020 / 25 / 30 T
KJS40-14×22004–14600–2,20012–5±0.10–4020 / 25 / 30 T
KJS40-14×25004–14600–2,50012–5±0.10–4020 / 25 / 30 T
KJS40-16×16004–16400–1,60012–4±0.10–4020 / 25 / 30 T
KJS40-16×20004–16500–2,00012–4±0.10–4020 / 25 / 30 T
KJS40-16×22004–16600–2,20012–4±0.10–4020 / 25 / 30 T
KJS40-16×25004–16600–2,50012–4±0.10–4020 / 25 / 30 T

Specifications are presented from information provided by the manufacturer. Confirm the final working envelope for the selected material grade, yield strength, surface, controls, electrical standard and destination requirements.

Slitting line review

Define the coil and every finished strip.

Share the incoming coil range, material grade, slit program, target widths, edge requirements, finished coil weight and required line speed.
